流體接頭密封件
流體接頭密封件主要用在螺紋管件接口和螺紋端口，符合DIN3869，ISO9974，ISO11926和ISO1179標(biāo)準(zhǔn)，主要材料有丁氰橡膠NBR85，氟橡膠FKM80，過氧化物硫化的三元乙丙橡膠 EPDM80。其他材料也可提供，請電話咨詢我公司。
.jpg)

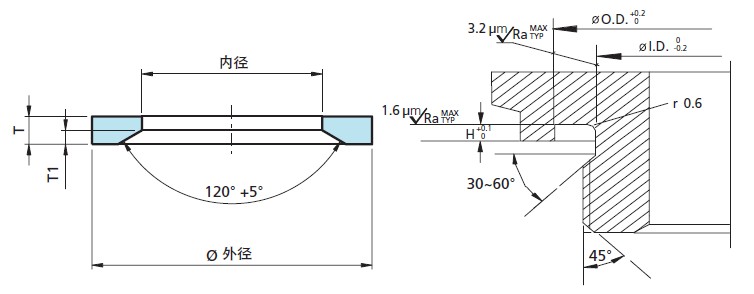

| 尺寸 | 螺紋(公制)) | 螺紋(英制) | ø內(nèi)徑 | T | øOD | øID | H |
| 10 | M 10 x 1 | G 1/8 A | 8.4 | 1 | 12 | 8.3 | 0.7 |
| 12 | M 12 x 1.5 | - | 9.8 | 1.5 | 14.5 | 9.7 | 1.2 |
| 14 | M 14 x 1.5 | G 1/4 A | 11.6 | 1.5 | 16.6 | 11.2 | 1.2 |
| 16 | M 16 x 1.5 | - | 13.8 | 1.5 | 19 | 13.7 | 1.2 |
| 17 | - | G 3/8 A | 14.7 | 1.5 | 19 | 14.7 | 1.2 |
| 18 | M 18 x 1.5 | - | 15.7 | 1.5 | 21 | 15.7 | 1.2 |
| 20 | M 20 x 1.5 | - | 17.8 | 1.5 | 23 | 17.7 | 1.2 |
| 21 | - | G 1/2 A | 18.5 | 1.5 | 24 | 18.4 | 1.2 |
| 22 | M 22 x 1.5 | - | 19.6 | 1.5 | 24.6 | 19.7 | 1.2 |
| 27 | M 26 x 1.5 | G 3/4 A | 23.9 | 1.5 | 29.3 | 23.8 | 1.2 |
| 27 | M 27 x 2 | G 3/4 A | 23.9 | 2 | 29.3 | 23.8 | 1.2 |
| 33 | M 33 x 2 | G1A | 29.7 | 2 | 36 | 29.6 | 1.6 |
| 42 | M 42 x 2 | G 1 1/4 A | 38.8 | 2 | 46 | 38.6 | 1.6 |
| 48 | M 48 x 2 | G 1 1/2 A | 44.7 | 2 | 51 | 44.5 | 1.6 |
